Botou Ever Lucky Environmental Protection Machinery Co., Ltd. (abbreviation: Ever Lucky Machinery) is an professional manufacturer of environmental machinery

+
  • QQ图片20180916103636.png
  • High-quality-felt-material-dust-collector-filter (2).jpg
  • High-quality-felt-material-dust-collector-filter (3).jpg
  • High-quality-felt-material-dust-collector-filter (4).jpg
  • High-quality-felt-material-dust-collector-filter (5).jpg
  • High-quality-felt-material-dust-collector-filter.jpg

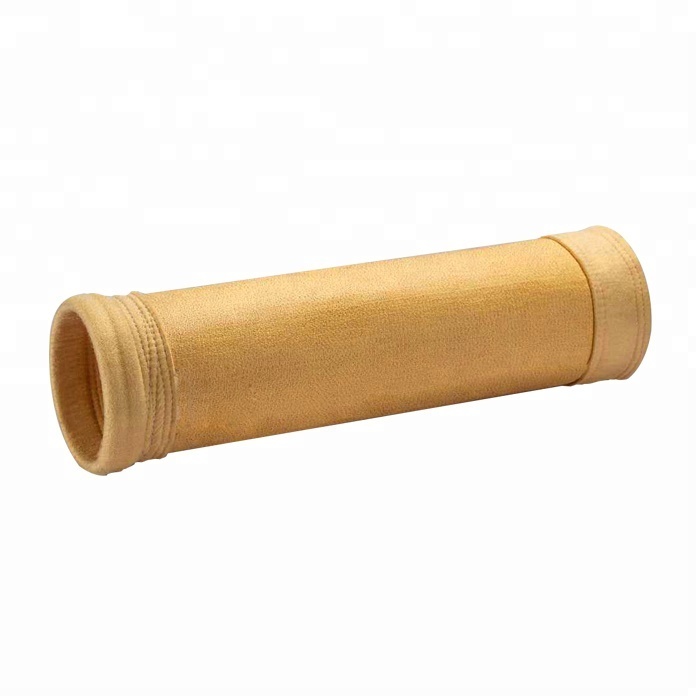

high quality filter bag

The dust collector bag is made of a textile filter cloth and a non-woven felt, and the dust-containing gas is filtered using the filtering action of the fiber fabric.

  • Commodity name: high quality filter bag
  • Commodity ID: 1149765447239487488
  • DESCRIPTION
  • The dust collector bag is made of a textile filter cloth and a non-woven felt, and the dust-containing gas is filtered using the filtering action of the fiber fabric.


    Model number

    Thickness
    (mm)

    Air permeability
    (CM/S)

    Break strength

    Working Tem.

    (℃)

    Weight
    (g/m2)

    Longitude

    Latitude

    FMS9801

    1.80

    15-40

    1600

    1400

    200-300

    ≥800

    FMS9802

    1.80

    15-40

    1800

    1600

    200-300

    ≥800

    FMS9803

    1.80

    15-40

    1800

    1600

    200-300

    ≥800

    FMS9804

    1.80

    15-40

    1600

    1400

    180-210

    ≥800

    FMS9805

    1.80

    15-40

    1600

    1400

    130-250

    ≥800

    FMS9806

    1.80

    15-40

    1600

    1400

    200-300

    ≥800

    FMS9807

    1.80

    15-40

    1600

    1400

    180-210

    ≥800

    FMS9808

    1.80

    15-40

    1600

    1400

    200-300

    ≥800

    FMS9809

    1.80

    15-40

    1600

    1400

    200-300

    ≥800

    FMS98010

    1.80

    15-40

    1600

    1400

    80-150

    ≥800

    Name

    Diameter

    Length

    Application

    Round bag
    (Filtration outside)

    180; 250; 300

    6000;8000;10000;12000

    Chamber reverse blow bag dust collector

    Round bag
    (Filtration outside)

    120;130;152;200

    2000;2400;2800;3200;3600;4000;

    4400;4800;5200;5600;6000;7000

    Pulse jet bag dust collector

    Flat bag

    800;900

    2000;3000;4000;5000;6000

    Rotary back blowing bag dust collector

    Envelope bag

    L*W*T

    1500*750*25

    Side-mounted bag dust collector


    Dust bag by temperature material points:
    1. Ambient bag: The room temperature bag is mainly made of polyester, polypropylene, acrylic and other fibers through non-woven and textile technology. It has good air permeability, smooth surface, good dimensional stability, easy to peel off dust and other excellent performance. It is mainly used in dust removal and normal temperature flue gas treatment in industries where dust pollution occurs in general industrial enterprises.
    2. Medium-temperature cloth bag: With the increasing emphasis on environmental protection by the country, especially the rapid development of bag-type dust-removing technology industry in recent years, China has begun to use imported synthetic fiber to develop conditions that can adapt to more severe working conditions. Lifetime high performance filter material. At present, the common medium-temperature filter material is aramid fiber, PPS series fiber through the immersion, waterproof, anti-oil, anti-corrosion process, so as to achieve the desired effect;
    3. High-temperature cloth bags: High-temperature cloth bags are mainly made of high-strength fibers such as P84, expanded glass fiber and ultra-fine glass fiber, which are processed through spinning and non-woven processes. They are characterized by good thermal stability, high filtration efficiency and long service life. Mainly used in dust collectors under various high-temperature flue gas conditions.

  • 关键词:
    • filter bag
    • dust filter bag
