Botou Ever Lucky Environmental Protection Machinery Co., Ltd. (abbreviation: Ever Lucky Machinery) is an professional manufacturer of environmental machinery

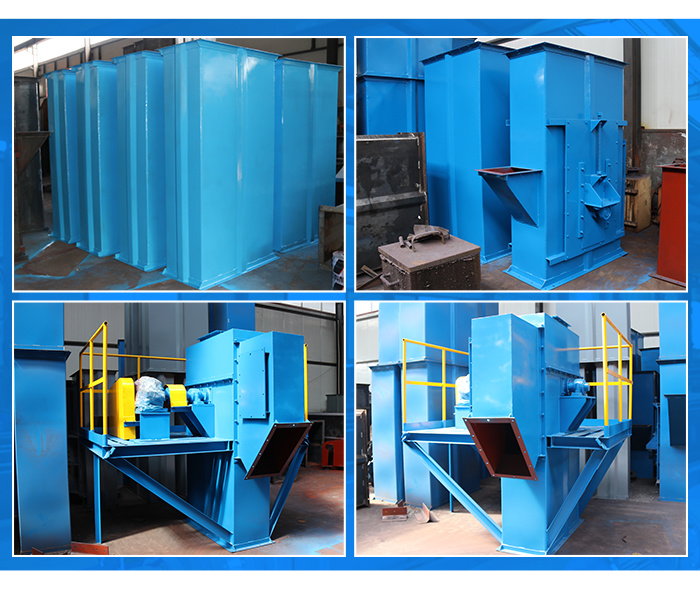

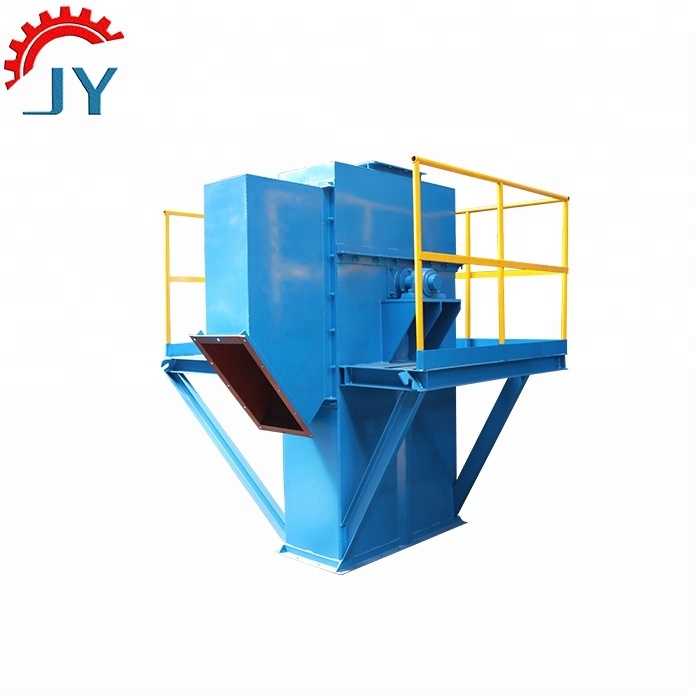

TH ring chain bucket elevator

Commodity name： TH ring chain bucket elevator
Commodity ID： 1149765609269645312

Category:

Ring chain type bucket elevator

Email:

sales01@everluckymachinery.com

Get A Quote

DESCRIPTION

TH-ring chain bucket elevator is suitable for conveying powdery, granular and small pieces without grinding and grinding materials. TH type bucket elevator is a kind of ring chain bucket elevator using hybrid or gravity discharge, excavation loading. It is suitable for conveying powdery, granular, and small block bottom grinding materials with a bulk density less than 1.5t/m3. Such as coal, cement, gravel, sand, fertilizer, food, etc. The TH bucket elevator is used for vertical conveyance of various bulk materials. It is suitable for conveying powdery, granular, and small bulk materials, and the material temperature is below 250°C.

Model number		TH315	TH400	TH500	TH630
Capacity(m³/h)	Middle hopper	35	60	75	114
Capacity(m³/h)	Deep hopper	59	94	118	185
Hopper size(L)	Middle hopper	3.75	5.9	6.3	14.6
Hopper size(L)	Deep hoper	6	9.5	15	23.6
Distance (mm)		512	512	688	688
Chain type		7	7	7	7
Diameter of chain (mm)		18	18	22	22
Distance of chain knot (mm)		64	64	86	86
Conveying lumpiness (mm)		40	40	60	60
Rising Height m9		40	40	40	40

TH160		TH200		TH250		TH315		TH400				TH500		TH630
ZH	SH	ZH	SH	ZH	SH	ZH	SH	ZH		SH		ZH	SH	ZH	SH
15	25	18	29	31	48	35	60	60		94		75	118	114	185
-	-	-	-	-	-	46	80	80		125		100	157	152	246
160		200		250		315		400				500		630
1.2	1.9	1.5	2.4	3.0	4.6	3.75	6.0	5.9			9.5	9.3	15.0	14.6	23.6
500						512						688
-						384						516
14×50						18×64						22×86
9						7						7
-						5						5
1.2						1.4						1.5
300		365		520		630			710			800		900
69.71		63.22		44.11		42.5			37.6			35.8		31.8
20		25		30		35			40			50		60

Product feature:

Easy to maintain, long life. The shell steel plate is thick and rigid.

The temperature of the conveying material can be up to 250°C. The lifting height is stable and reliable, with low noise and easy maintenance.

The middle section casing has two forms of single channel and dual channel. Improve the model to enhance the delivery of more than 30% increase than the average model.

The hoist chain is made of low-alloy steel forged and treated with carburizing and quenching to provide high tensile strength and wear resistance.

TH-ring chain bucket elevator is a kind of ring chain bucket elevator using hybrid or gravity discharge, excavation loading. High quality alloy steel high round chain for traction parts. The central chassis sub-single and double-channel form are automatic tensioning of the internal weight box constant force. The sprocket has a replaceable rim assembly structure. Long service life and easy rim replacement. The lower part adopts automatic gravity tensioning device, which can maintain a constant tension and avoid slipping or de-chaining. At the same time, the hopper has certain tolerance when encountering the jamming phenomenon caused by accidental factors, and can effectively protect the lower shaft and other components.

Two kinds of bucket elevator:

ZH type (in the deep bucket) is generally suitable for conveying wet, easy to caking, more difficult to throw the material, such as wet sand, sand, fertilizer, alkali fertilizer, alkali powder and so on. Type SH (deep bucket) is generally suitable for conveying dry, loose and easily thrown materials such as cement, gravel, coal, etc.

TH-ring chain bucket elevator transmission has two forms, equipped with ZJ reducer and ZQ reducer. The ZJ shaft-mounted decelerator is directly mounted on the shaft shaft head, eliminating the need for a drive platform, coupling, etc. The structure is compact, light weight, and the special roller backstop inside, the backstop is reliable, the decelerator noise Low, stable operation, and floating with the spindle eliminates installation stress. The maximum conveying capacity of the machine is 365m3/h and the maximum lifting height is 50m.

Model Choice:

As a commonly used lifting equipment, the selection of the bucket elevator is restricted by many factors, and selecting the wrong model will bring endless trouble to the user.

It is generally decided that the bucket elevator selection depends on the following factors:

Material form: whether the material is powdery or granular or small.

Physical properties of the material: The material has no adsorption or viscosity, whether it contains water.

The proportion of materials: The parameters of the general bucket elevator are designed and calculated for materials with a bulk density of less than 1.6. Too much material weight needs to be calculated for the traction force and the tensile strength of the transmission section.

Unit volume of delivery.

In general, the form of the material directly determines the unloading mode of the material. The common rule is that the powdered material is discharged by centrifugal ejection and the bulk material is unloaded by gravity. The unloading method determines the hopper type adopted by the bucket elevator. The difference is that the centrifugal ejection unloading mostly uses shallow buckets and arc buckets, while gravity unloading requires deep buckets.

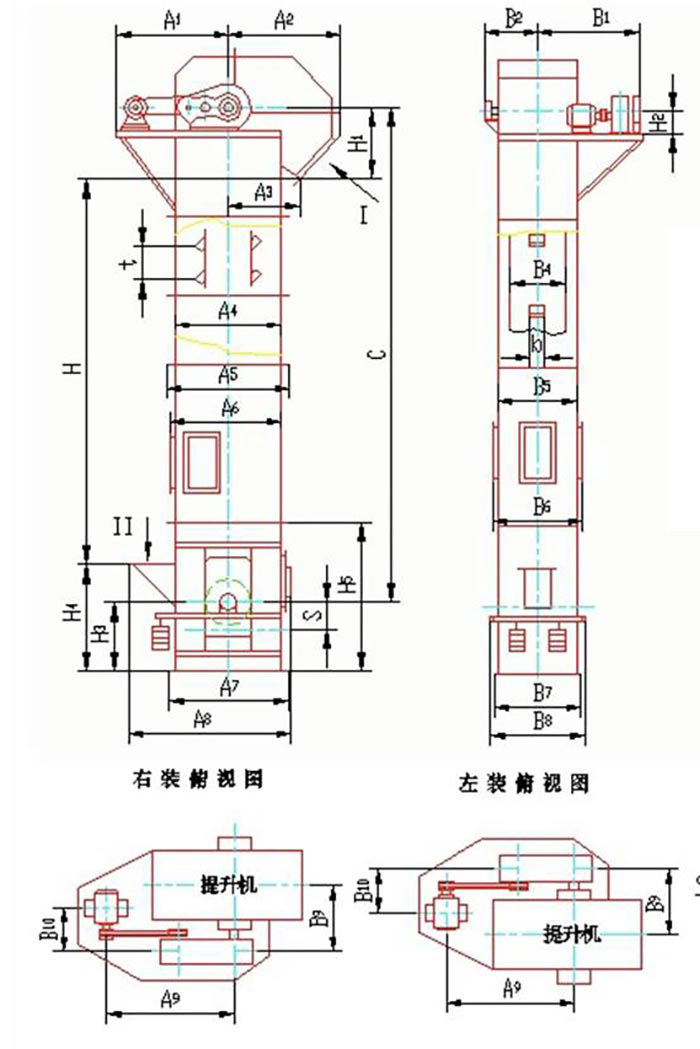

Structural Drawing：
