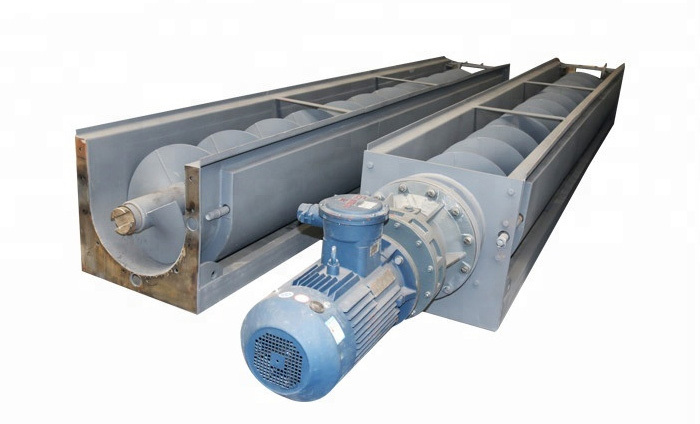

Stainless steel 304 U trough screw conveyor

没有此类产品
Details
U-type screw conveyor is a kind of screw conveyor, and the production is made according to the DIN15261-1986 standard, and the design complies with JB/T7679-2008 "spiral conveyor" professional standard. U-type screw conveyor is widely used in food, chemical, building materials, metallurgy, mining, power and other departments, mainly for the transmission of small particles, powder, small pieces of material. It is not suitable to transport materials that are easily deteriorating, have larger stickiness, and have higher moisture content.

Screw conveyor classification:
According to screw conveyor drive classification
1. If the length of U-shaped screw conveyor is less than 35m, it is a single-axis driving screw.
2. If the length of U-shaped screw conveyor is greater than 35m, it is a two-axis driving screw.
According to the screw conveyor middle hanger bearing type
1. M1- is a rolling bearing, adopts type 80000 sealed bearing, and the shaft cap has a dust-proof sealing structure. It is commonly used in areas where it is difficult to refuel, no refueling, or oil contaminates the material. The sealing effect is good, and the hanging shaft has a long service life. Temperature of conveying material ≤ 80°C.
2. M2- is a sliding bearing, equipped with a dustproof sealing device, a cast copper tile, an alloy wear-resistant cast iron tile, and a copper-based graphite less oil-lubricated tile. Commonly used in the transmission of material temperature is relatively high (t ≥ 80 °C) or transport water containing larger materials.
According to screw conveyor material classification
1. Ordinary carbon steel U-shaped screw conveyors - Mainly used in industries where cement, coal, stone, etc. wear out, and there are no special requirements for materials.
2, stainless steel U-shaped screw conveyor - mainly applicable to food, chemical, food and other industries that have requirements for the delivery environment, cleanliness, and will not produce pollution on the material, the use of a long time, but the relatively high cost.


LS type

100

160

200

250

315

400

500

630

800

1000

1250

GX type

　

　

200

250

300

400

500

　

　

　

　

Screw diameter(mm)

100

160

200

250

315

400

500

630

800

1000

1250

Screw pitch(mm)

100

160

200

250

315

355

400

450

500

560

630

Rotating speed(r/min)

140

120

90

90

75

75

60

60

45

35

30

Conveying capacity QΦ=0.33（m3/h）

2.2

7.6

11

22

36.4

66.1

93.1

160

223

304

458

Power Pd 1=10m(KW)

1.1

1.5

2.2

2.4

3.2

5.1

4.1

8.6

12

16

24.4

Power Pd 1=30m(KW)

1.6

2.8

3.2

5.3

8.4

11

15.3

25.9

36

48

73.3

Rotating speed(r/min)

120

90

75

75

60

60

45

45

35

30

20

Conveying capacity QΦ=0.33（m3/h）

1.9

5.7

18

18

29.1

52.9

69.8

125

174

261

305

Power Pd 1=10m(KW)

1.0

1.3

2.1

2.1

2.9

4.1

4.7

6.8

9.4

14.1

16.5

Power Pd 1=30m(KW)

1.5

2.3

4.5

4.5

7

8.9

11.6

20.4

28.3

42.2

49.5

Rotating speed(r/min)

90

75

60

60

45

45

35

35

30

20

16

Conveying capacity QΦ=0.33（m3/h）

1.4

4.8

15

15

21.8

39.6

54.3

97

149

174

244

Power Pd 1=10m(KW)

0.9

1.2

1.9

1.9

2.5

3.4

4.3

5.4

8.1

9.5

13.3

Power Pd 1=30m(KW)

1.2

2.2

3.8

3.8

5.4

6.8

9.2

16

24.4

28.6

39.9

Rotating speed(r/min)

75

60

45

45

35

35

30

30

20

16

13

Conveying capacity QΦ=0.33（m3/h）

1.2

3.8

11

11

17

31.7

46.5

73.0

99.3

139

199

Power Pd 1=10m(KW)

0.75

1.1

1.6

1.6

2.1

3.1

3.7

4.6

5.7

7.7

11

Power Pd 1=30m(KW)

1.1

1.8

3.4

3.4

4.4

5.6

8

14

16.7

23.2

33



Equipment Features:
U-shaped screw conveyor is a kind of screw conveyor, which is suitable for small-scale operation, stable transmission, and can play a good role in the limited conditions of the transmission site. The sealing performance is good, and it has great advantages for occasions where the dust is large and where there are requirements for the environment, which can prevent the generation of dust in the conveying process. However, the U-shaped screw conveyor is not suitable for long-distance transportation. The manufacturing cost is larger than that of the belt conveyor, and it is easy for the fragile materials to be destructed.

Structural Drawing:

Corresponding parameter set not found, please add it in property template of background
暂未实现,敬请期待
暂未实现,敬请期待
