Live bottom silo

High quality live bottom silo with multi screw conveyor

Product Description

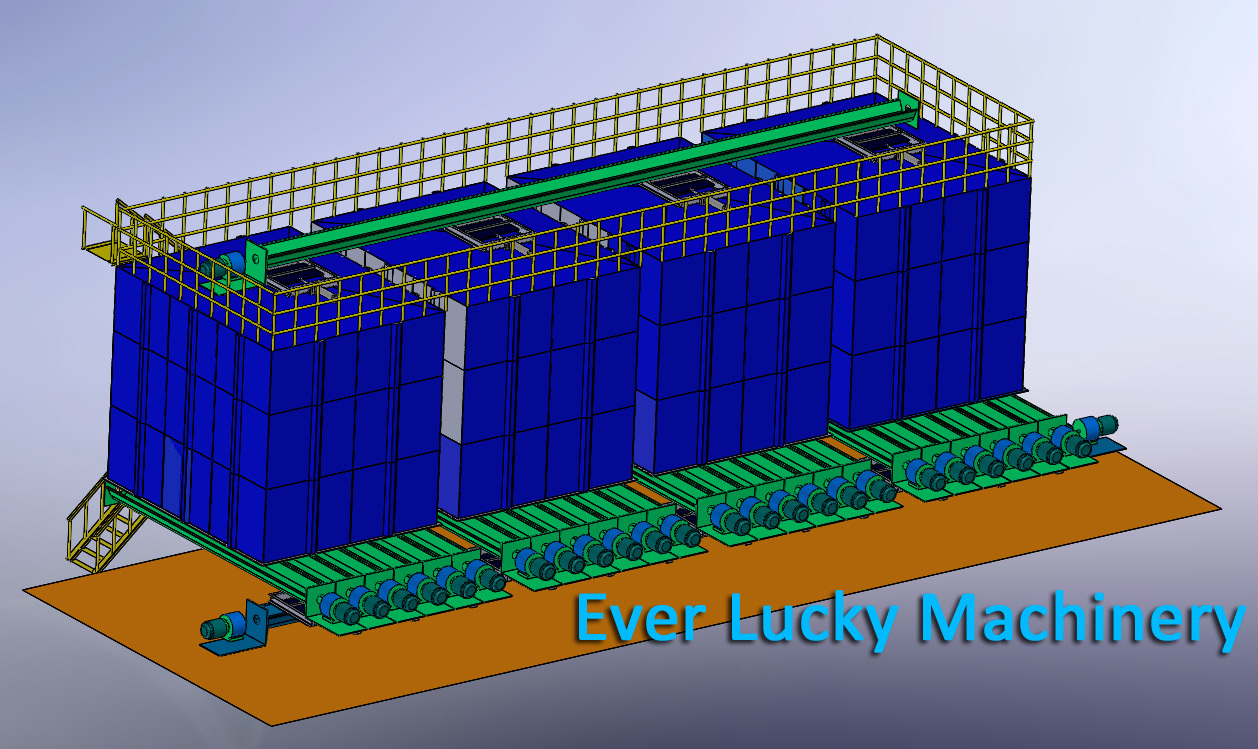

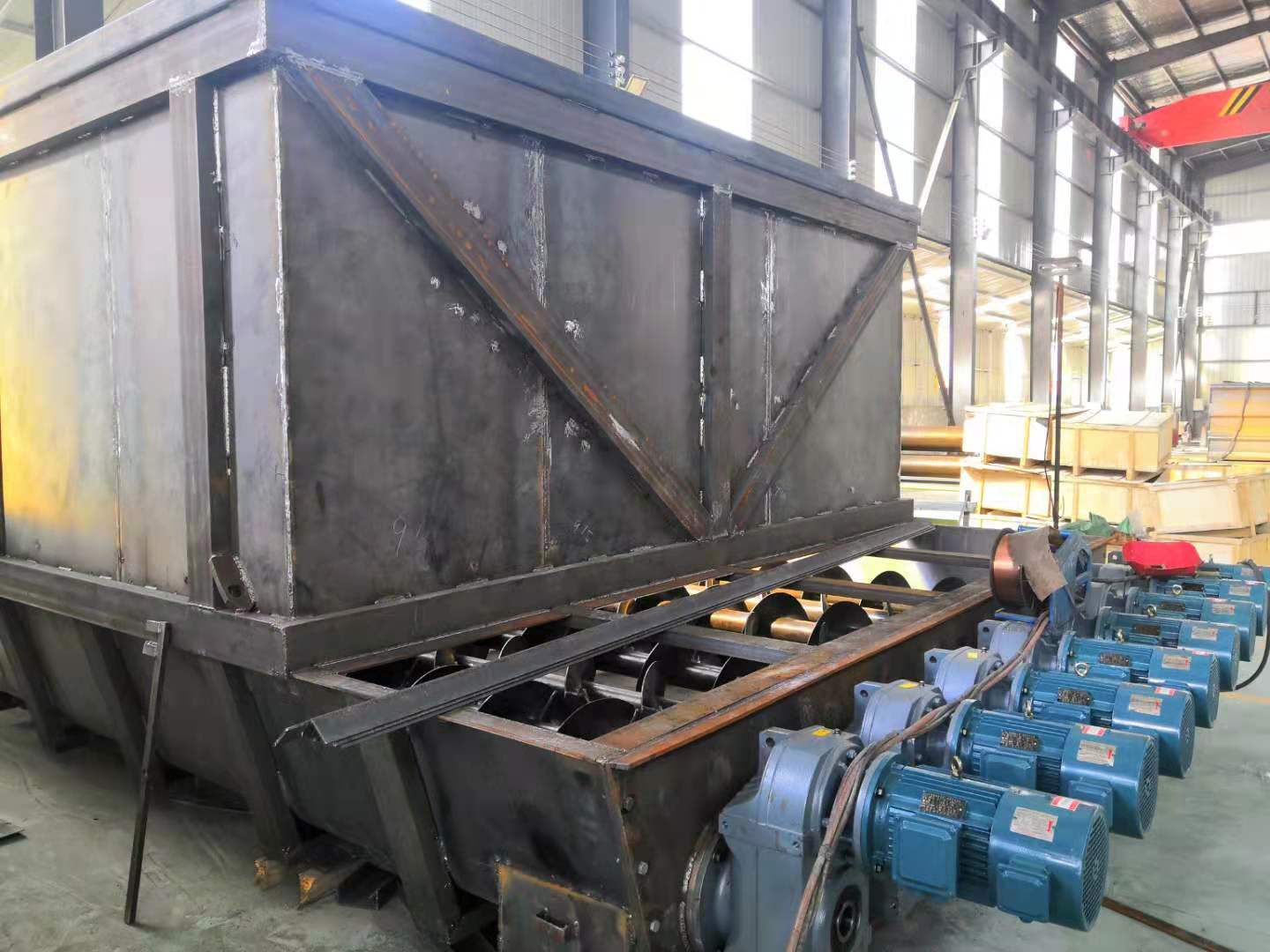

Live Bin Bottoms (Multiple Screw Feeders) are equipped with a modular trough which encloses up to 6 shafted helicoid flight or
paddle screws, externally flanged, fully protected end bearing assemblies complete with manually adjustable packing gland and
shaft seal, a rectangular outlet spout covering the entire width of the bin bottom, bolted end plates, splined shaft couplings for
medium heavy-duty, and flanged shaft couplings for the heavy-duty version.
Furthermore,  Live Bin Bottoms are equipped with one gear motor per screw shaft or, depending on the application, with a drive
unit driving more screws.
